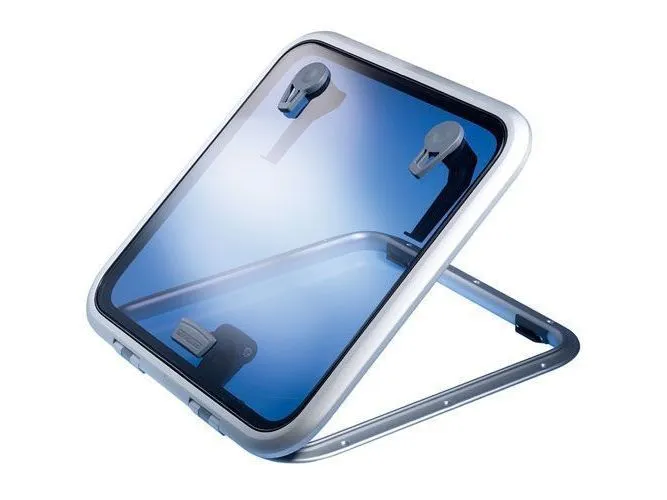

The Low Profile Hatch has soft styling and sleek looks, ideal for use on a powerboat. Smaller ventilation hatches are suitable for any deck location on sailboats, while the larger sizes can be used as foredeck hatches on smaller to mid size yachts.

• Outside handles allow the hatch to be opened from on deck if it is not locked
• Low profile hatches open up to 180° (round hatches open to 170°)
• Friction levers hold the lid open in any position up to 95°
• Anodised aluminium frame for corrosion resistance
• Curved upper frame profile for strength as well as modern styling
• Available in Round and D-Hatch configuration
• Full range of spare parts available



Mounting Instructions
Fit to a flat surface with a maximum tolerance of /- 1mm.
Fastening size at hinge section use (M6 / 1/4").
Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

Specification

• Support System - Self Supporting
• Lower Frame (mm) - 15
• Acrylic Colour - Smoke Grey
• Hatch Weight (kg) - 6.4
• Acrylic Window Thickness (mm) - 10
• Length X (mm) - 577
• Width Y (mm) - 577
• Height Z (mm) - 25
• Radii R (mm) - 72.5
• Cut-Out Length X1 (mm) - 507
• Cut-Out Width Y1 (mm) - 507
• Cut-Out Radii R1 (mm) - 42.5
